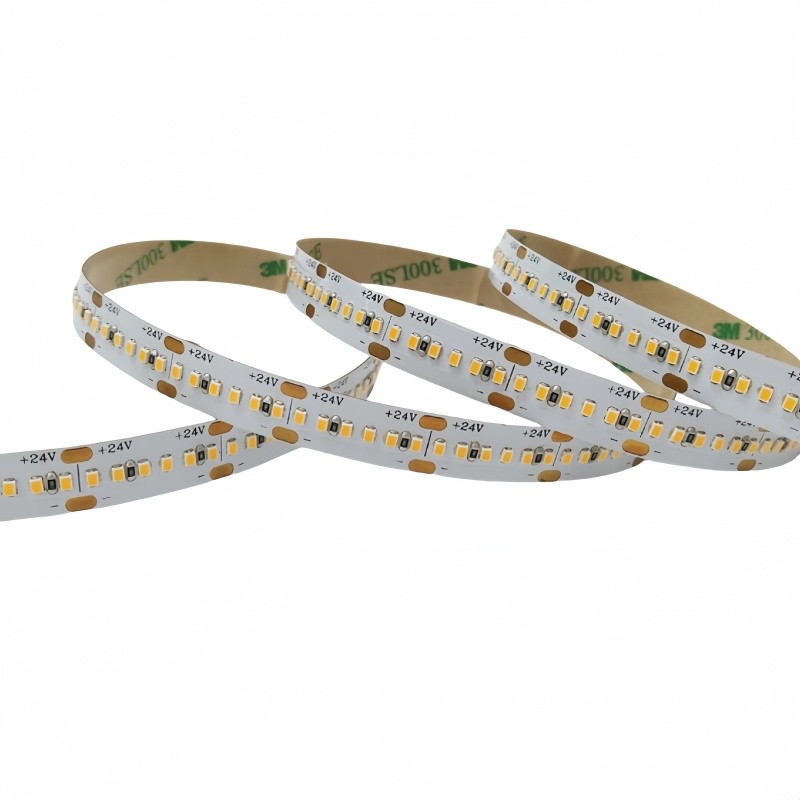

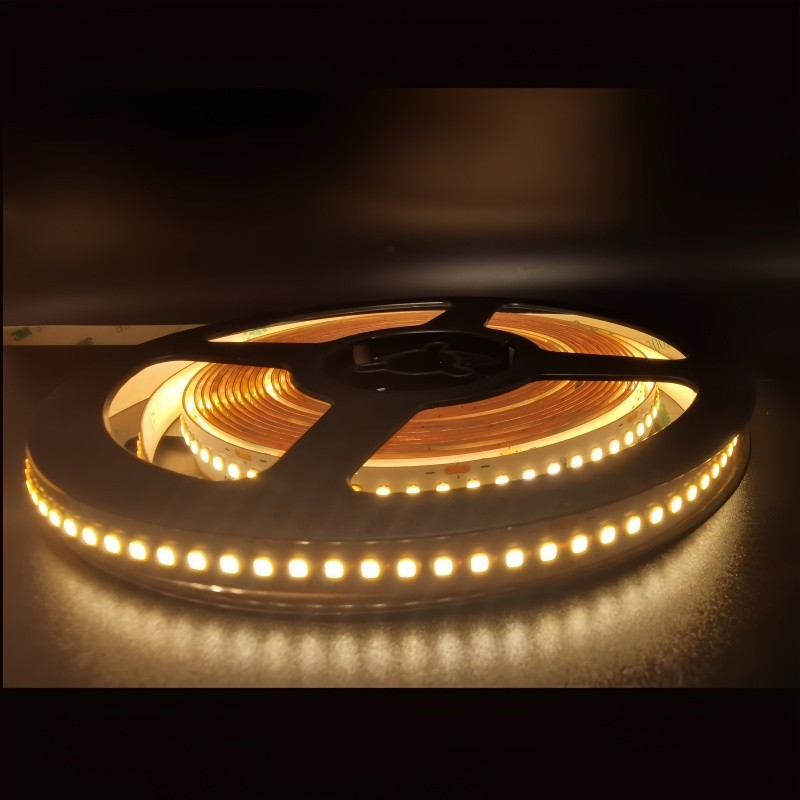

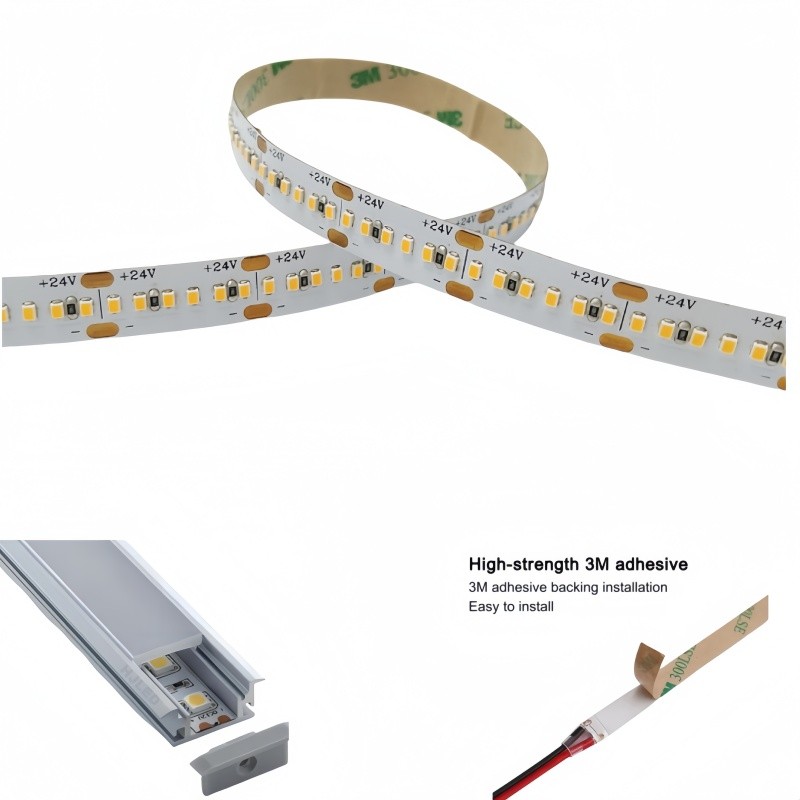

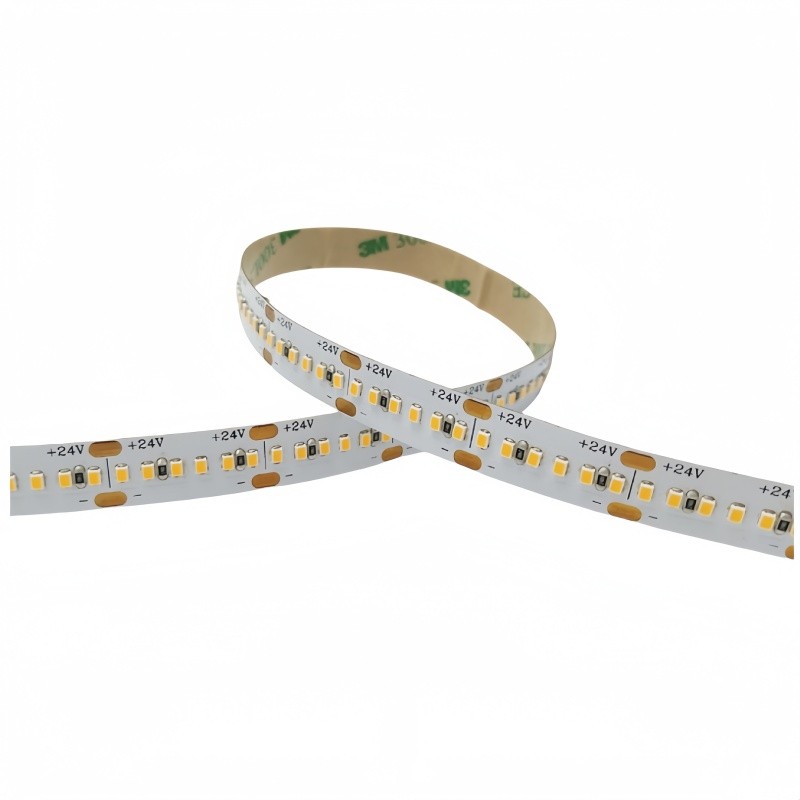

The 2216 LED strip light incorporates 2216 SMD (Surface-Mounted Device) LEDs.These ultra-compact LEDs are engineered to deliver high-density, uniform illumination with exceptionally narrow spacing between individual diodes. Renowned for their superior performance, 2216 LED strips feature a high Color Rendering Index (CRI) and exceptional luminous consistency, making them ideal for applications requiring precise and even light distribution.


IP Rating Available

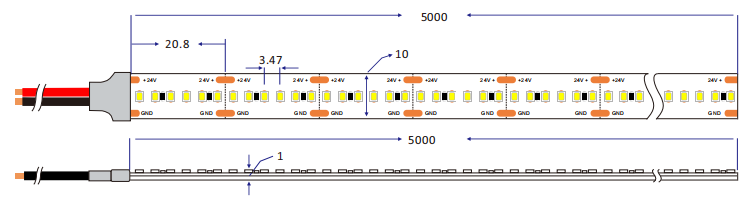

Production Dimension(mm)


						Specification

						Electrical Parameter

						Optical Parameter

						LED Qty.

						288 LEDs/m

						Power/M

						18W

						Voltage

						DC 12V / 24V

						LED Type

						SMD 2216

						CRI

						Ra90

						Color Temp.

						2700K~6000K

						PCB width

						10mm

						Beam angel

						120°

						IP Rating

						IP20/IP65/IP67/IP68(options)

						FPC Copper

						2oz

						Life span

						50000hrs

						Working Temperature

						-20℃~50℃

						Cutting unit

						20.8mm

						Warranty

						3year

						Packing

						5m/Roll;  10m/Roll



















































































| Connection and Lighting solutions: |


| Application: |
