The 2835 LED strip is one of the most widely used LED lighting solutions, renowned for its superior luminous efficacy and energy efficiency compared to traditional 3528 and 5050 LED strips. Engineered to deliver an optimal balance between high brightness and low power consumption, the 2835 SMD (Surface-Mounted Device) configuration ensures excellent light output with minimal energy waste.


IP Rating Available





Production Dimension(mm)


						Specification

						Electrical Parameter

						Optical Parameter

						LED Qty.

						60 LEDs/m

						Power/M

						10W

						Voltage

						DC 12V / 24V

						LED Type

						SMD 2835

						CRI

						Ra90

						Color Temp.

						2700K~6000K

						PCB width

						5mm

						Beam angel

						120°

						IP Rating

						IP20/IP65/IP67/IP68(options)

						FPC Copper

						2oz

						Life span

						50000hrs

						Working Temperature

						-20℃~50℃

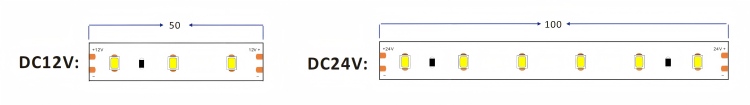

						Cutting unit

						50mm(12V)

						Warranty

						3year

						Packing

						5m/Roll;  10m/Roll



						100mm(24V)













































































































| Connection and Lighting solutions: |

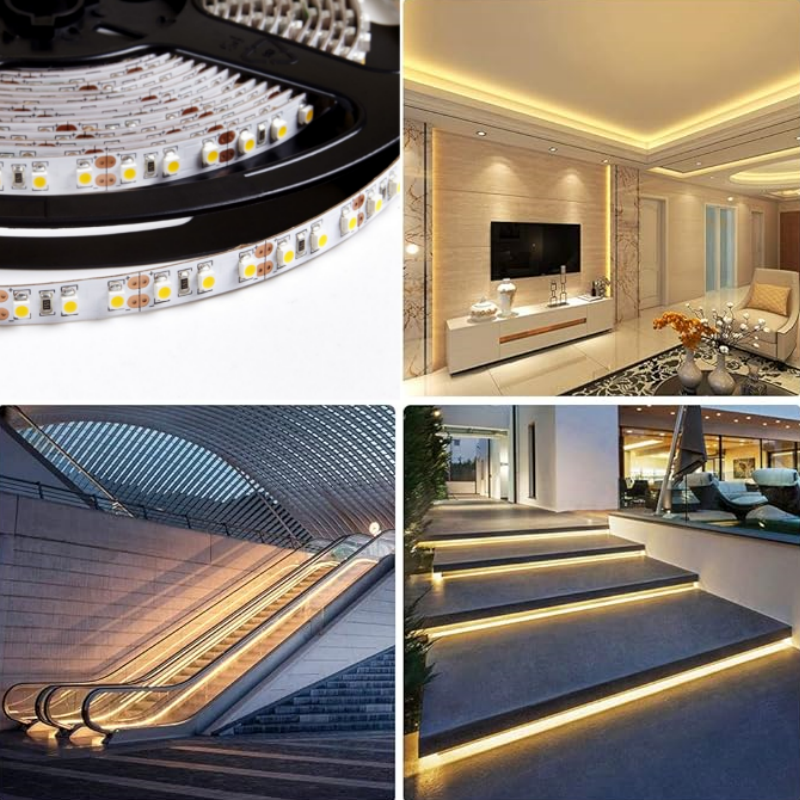

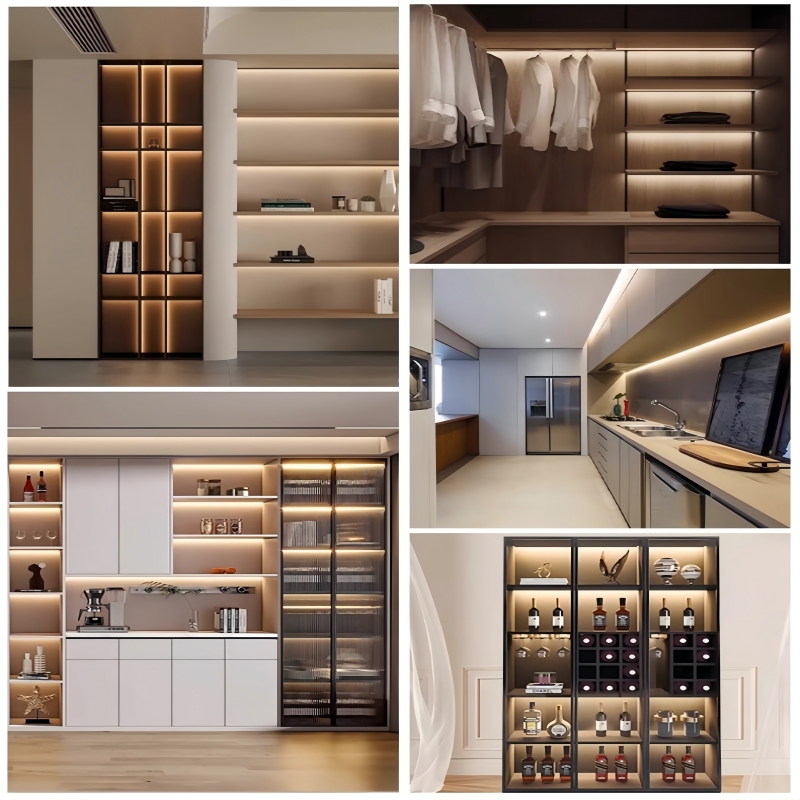

| Application: |
