5050 LED Strips: High-Brightness Lighting with RGB Color Capability
5050 LED strips utilize a larger form factor compared to 3528 and 2835 variants, enabling three diodes per chip for enhanced luminosity and full RGB color mixing. This design delivers vibrant, dynamic lighting effects, making them ideal for accent lighting, decorative applications, and immersive environments.

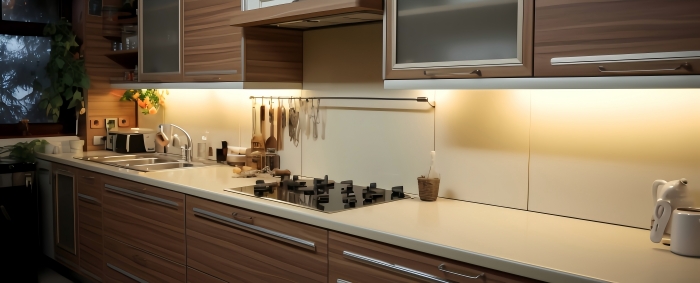

With higher power output and superior brightness, 5050 LED strips excel in spaces demanding strong illumination, including kitchens, retail displays, living areas, and outdoor installations. Their robust construction and efficient heat dissipation ensure reliable performance even in extended use.
IP Rating Available

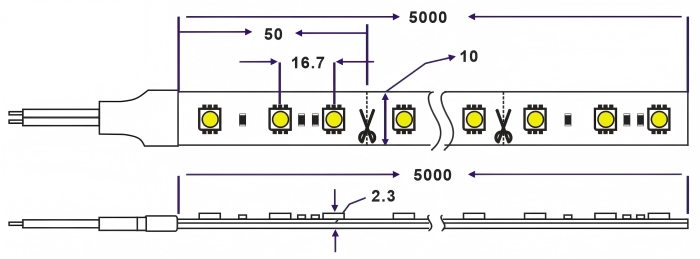

Production Dimension(mm)
Specification
Electrical Parameter
Optical Parameter
LED Qty.
60 LEDs/m
Power/M
14.4W
Voltage
DC 12V / 24V
LED Type
SMD 5050
CRI
Ra90
Color Temp.
2700K~6000K/Red/Green/Blue/Yellow/CCT
PCB width
10mm
Beam angel
120°
IP Rating
IP20/IP65/IP67/IP68(options)
FPC Copper
2oz
Life span
30000hrs
Working Temperature
-20℃~50℃
Cutting unit
25mm(12V);
Warranty
5 year
Packing
5m/Roll; 10m/Roll
50mm(24V)

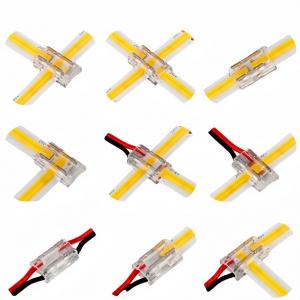

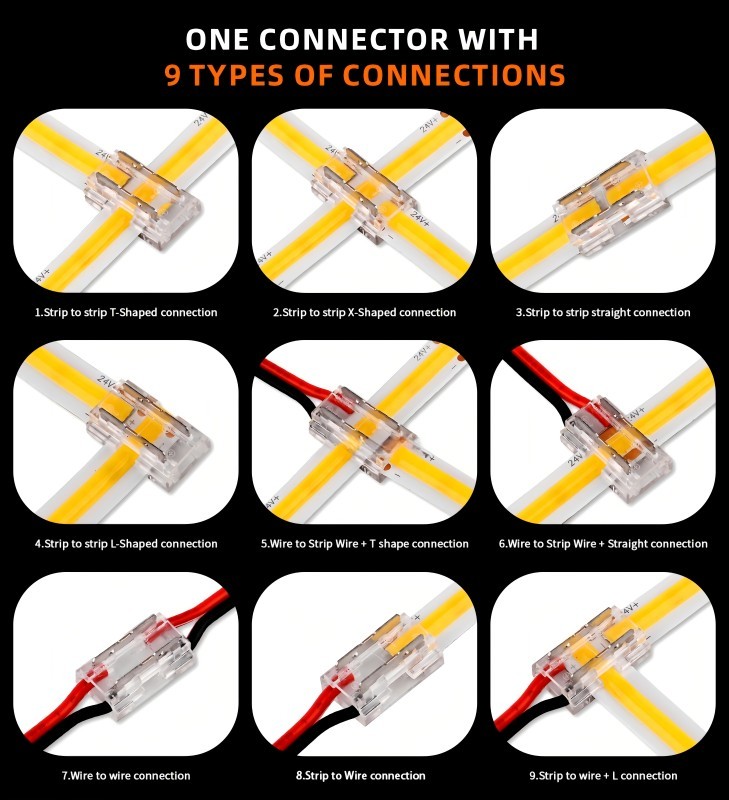

Connection and Lighting solutions: |
Application: |
